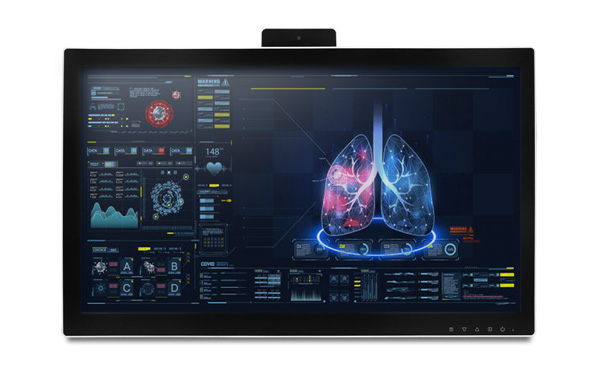

MEDDP-727

27” Slim 4K Medical Display

Display
Size	27"
Resolution	3840 x 2160 pixels
Max. Colors	1.07B colors
Brightness (Typ.)	500 nits
Viewing Angle(CR=10) (Typ.)	178˚(H)/178˚(V)
Contrast Ratio (Typ.)	1000:1
Touch Screen	Projected Capacitive Multi Touch Screen

System
OS Support	Windows® 10, Windows 11

I/O
Input Signal	VGA x 1, DVI-D x 1 ,HDMI 2.0 x 1 ,Display 1.2 x 1, 3G SDI x 1
Output Signal	3G SDI x 1
USB Port	USB 2.0 Type B x 1 for Touch Screen
Speaker	Built in 10W speaker x 2
Audio	Line-in x 1
Power	DC 12V Input x 1
Functional	Grounding Pin x 1

Mechanical and Environmental
VESA	100mm x 200mm ,100mm x 100mm
Power Requirement	External power adapter, AC IN: 100 ~ 240V,12V
Operating Temperature	0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C(-4°F ~ 140°F)
Storage Humidity	10% to 90% RH, noncondensing
Dimension	657mm x62mm x 400mm
Packing Size	773mm×297mm×596mm
Gross Weight	11.7kg
Net Weight	9.7kg
Certifications	CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class B

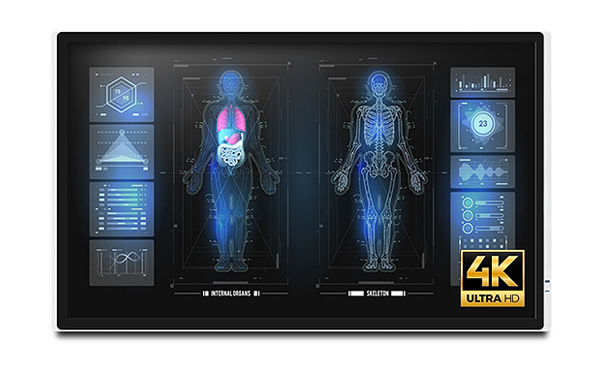

MEDDP-632

32” 4K-UHD Medical LCD Monitor

Display
Size	32"
Resolution	3840x2160 pixels
Max. Colors	1.07B Colors
Brightness (Typ.)	350 nits
Viewing Angle(CR=10) (Typ.)	178˚(H)/178˚(V)
Contrast Ratio (Typ.)	1000:1
Touch Screen	Projected Capacitive Multi Touch Screen

System
OS Support	Windows® 8, Windows® 10, Windows® 11

I/O
Input Signal	Audio-in x 1, Dual DVI x 1, DP 1.2 x 1, VGA x 1, 3G SDI x 1, HDMI 1.4 x 1, HDMI 2.0 x 1
Output Signal	DP 1.2 x 1(Multi-Stream Transport), 3G SDI x 1(Loop Through, support 1080P), Audio Out x 1, 5V/ 1A out x x
USB Port	USB 2.0 Type B x 1 for Touch Screen
Serial Port	RS-232 x 1
GPIO	RJ-11 x 1
Speaker	Built in 5W speaker x 2

Mechanical and Environmental
Power Consumption	55 W typical
Operating Temperature	0°C to 35°C
Storage Temperature	-20°C to 60 °C
Storage Humidity	10%~90%@35°C, non-condensing
VESA	100mm x 200mm and 200mm x 200mm
IP rating	Front IP65
Power Requirement	External power adapter, AC IN: 100 ~ 240V, 24V
Dimension	799 x 478 x 63.7 mm
Packing Size	980x260x700mm
Gross Weight	20 Kg
Net Weight	18 Kg
Certifications	CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class B

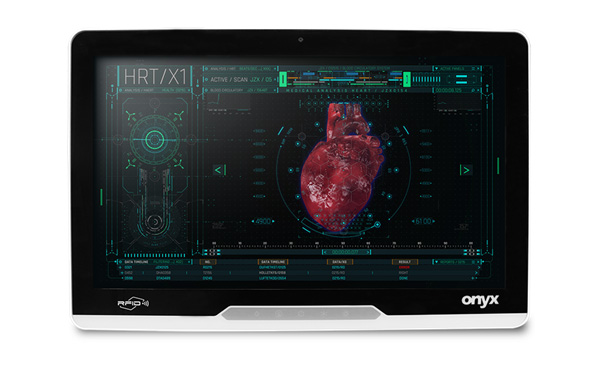

24” Fanless 13th Generation Core i9 Powerful Medical All in One PC

Main Specifications
Processor	Intel 13th Generation Core i9-13900TE 24 Cores 5.00GHz Intel 13th Generation Core i7-13700TE 16 Cores 4.80GHz Intel 13th Generation Core i5-13500TE 14 Cores 4.50GHz Intel 13th Generation Core i3-13100TE 4 Cores 4.10GHz
System Memory	Supports Dual Channel DDR5 5600/ 4800 SODIMM up to 64GB
Expansion Interface	PCI Express[x4]/[x1] x1 (optional)
OS Support	Windows® 10, Windows® 11, Linux®
Storage Disk Drive	M.2 2280 SATA SSD x 1 2.5" SATA Hard Disk Drive/SSD x 1 (optional)
Security	Trusted Platform Module 2.0 , Imprivata RFID Reader (optional)
Wireless Communication	802.11 ac/a/b/g/n(optional), 802.11 ax (optional), Bluetooth 5 (optional)
Speaker	2W x 2
Function Key	LCD Brightness Up/Down, Touch Screen On/Off, Reading Light On/Off
Power Requirement	AC 100~240V / DC 12V

I/O
USB	USB 3.2 Gen 2 x 2 ,USB 3.2 Gen1 x2
Serial Port	RS-232 x 2 or x1
Ethernet	1.5KV Isolated Gigabit LAN x 2
Video Out	HDMI 2.0 x 2 (Supports resolution up to 3840 x 2160)
Audio	Mic-in, Line-out

Mechanical and Environmental
Operating Temperature	0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C(-4°F ~ 140°F)
Mounting VESA	75/100 mm
Degree of protection	IP65 in the front ; IP54 in the back
Dimension	586 x 381 x 67mm
Package Size	755 x 195 x 528mm
Gross Weight	14kg (30.86 lb)
Net Weight	8.7 kg (19.2 lb)
Certifications	CE : EN 60601-1-2: 2015 + A1: 2021 (V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 (V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020 (ITE) IEC62368-1:2020+A11:2020 (ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005 / A1:2012 / A2:2021 (V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) (V3.2) TELEC:JAPAN TELEC

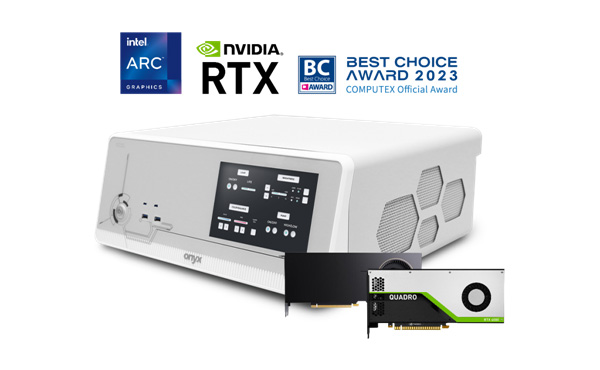

Dual GPU card Medical AI Box PC with Intel 13/12th Gen Core i9 CPU

Intel® 13/12 Gen Core i9 Processor
Support 4 x ECC DDR4 3200 288 pin Long-DIMM up to 128GB
Optional 7" Front Screen with P-Cap Touch
Support front dual USB 3.0
Support GPIO and Remote Power Switch design for embedded use
Support Dual Nvidia RTX A6000 cards and additional capture card installation
Support 4 x PCIe Gen4 Slots for high end graphic card and capture card integration
Support Medical Grade 1500W PSU for Dual GPU Card and 700W PSU for Single GPU card

Main Specifications
Processor	Intel® 13/12th generation Core I Processor
Chipset	Intel W680
System Memory	Supports ECC DDR4 3200 DIMM x 4 up to 128GB
Front Scree(Optional)	7” LED Panel with P-Cap Touch
Storage Disk Drive	2.5" SATA x 2, M.2 SSD x 1
TPM	2.0
Speaker (Optional)	5W x 2
OS Support	Windows® 10 and 11, Linux (optional)

I/O
USB	USB 3.2 Gen 2 Type A x 5, USB Gen 2 20G Type C x 1
Ethernet	GigaLAN x 1, 2.5G LAN x 2
Video Out	HDMI 2.0 x 1, DP 1.4 x 1, VGA x1
Audio	Line-in x 1, Mic-in x 1, Line-out x 1
Series Ports	RS232 x 2
Function I/O	Remote power switch x 1 (Optional) Grounding pin x 1
Power	AC input
Front I/O	USB 3.0 x 2, Power Button x 1
Expansion I/O	2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE3)) with x16 connector PCIe [x 4] x 2 M.2 2230 E Key x 1 M.2 2280 M Key [PCIe x 4] x 1

Mechanical and Environmental
Power Consumption	100V to 240V AC Input , 700W or 1500W
Operating Temperature	0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C(-4°F ~ 140°F)
Dimension	420 x 169 x 409 mm
Package Size	630 x 310 x 565 mm
Gross Weight	12kg
Net Weight	11kg
Certifications	CE: EN 60601-1-2: 2015 + A1:2021 (V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B/ Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/ A2:2021(V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) (V3.2)
