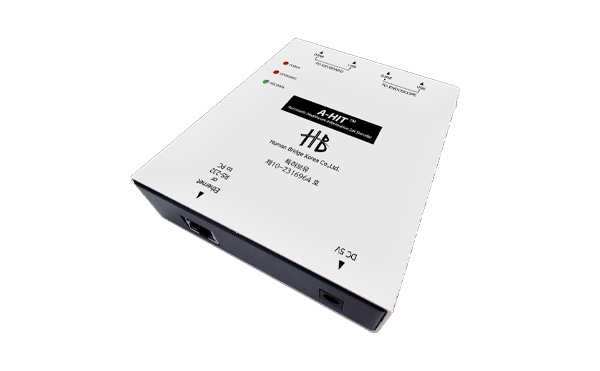

A-HIT™

Automatic Healthcare Information Transfer

This product is a device that connects the endoscope DICOM Gateway and the endoscope equipment main body, and it transmits the patient ID and NAME input from the DICOM Gateway to the endoscope equipment main body.
At this time, software is installed that converts the Korean name to English and transmits the corresponding information to the equipment side using USB communication.
This product replaces the existing method of the operator manually entering the patient ID and NAME through the endoscope keyboard, and automatically types the corresponding information, thereby reducing input errors that may occur during manual input, and plays a role in transmitting and inputting the corresponding information quickly and accurately.

Features of A-HIT™

  • Reduces user fatigue from having to type manually.
  • Prevents typos caused by manual input.
  • Reduces the various and complex work processes in the endoscopy room by enabling accurate information to be delivered quickly through linkage with the worklist.
  • No separate power is required by using the USB power of the endoscope processor.
  • Automatically turns ON/OFF according to the power ON/OFF of the endoscope processor.

A New Concept using A-HIT™

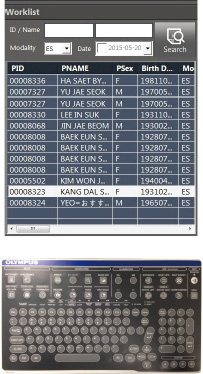

AS-IS

STEP 1
Retrieve patient information from Worklist
STEP 2
Visually check patient information
STEP 3
ID, NAME typing using endoscope keyboard
  1. 1. Typo may occur when entering patient information.
  2. 2. The keyboard of the endoscope is not good at hitting.
  3. 3. It's slow because of manual typing.

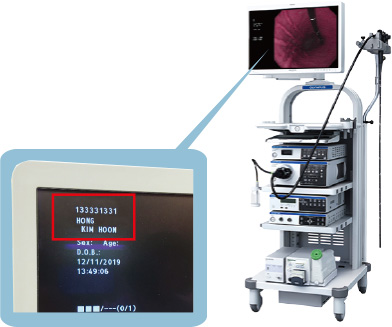

TO-BE

ONE STEP
When patient information is retrieved from the worklist, it is automatically entered on the endoscope monitor screen.
  1. 1. There is no error in patient information input, and it is possible to input quickly and accurately.
  2. 2. You can enter the full name quickly without error.
  3. 3. It is easy to re-enter when changing information.
  4. 4. Size : 110mm x 125mmx 33mm

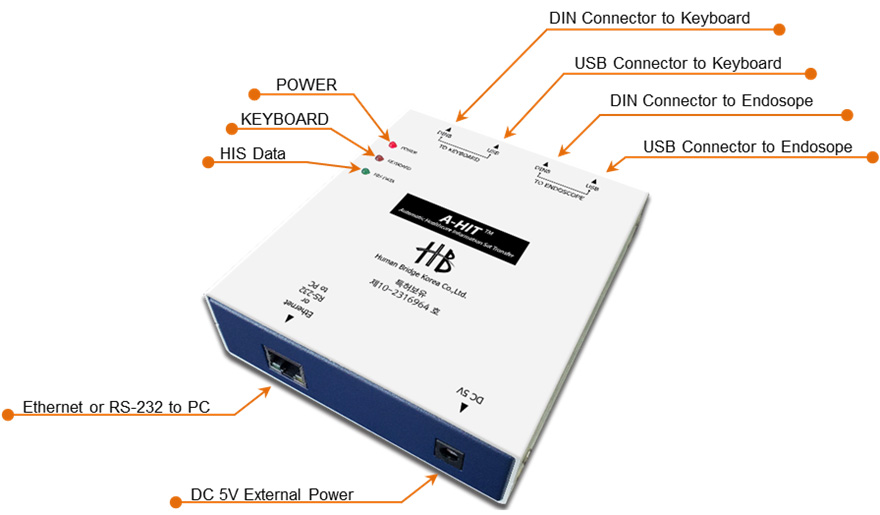

Configuration of A-HIT™

Connect the endoscope keyboard to the input terminal of this product and connect it to a computer via RS-232 or Ethernet.

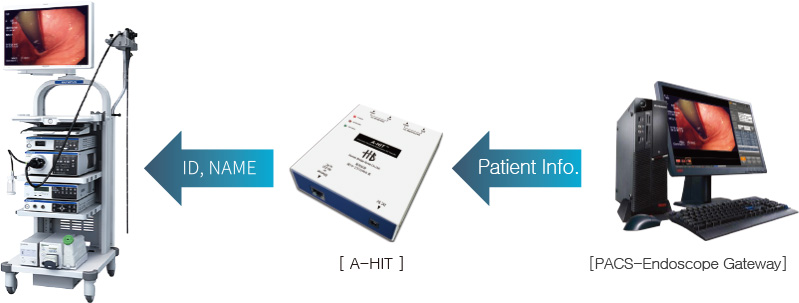

Connection of A-HIT™
