Auto Triggering Shutter(Remot Switch) for Endoscope

This product is a device that replaces the foot switch used to capture endoscopic images, and automatically captures images by pressing the Scope button on the endoscope.

A New Concept using HuBridge™

AS-IS

Conventional Method 「FOOT SWITCH」

STEP 1 Freeze
Operator takes the Freeze.
STEP 2 Foot Switch
Operator take one image and send to the PACS system by using Foot Switch.
  1. 1. Quite often breakdown of Foot Switch
  2. 2. Easily disconnected due to the lines on the floor.
  3. 3. Easily soiled due to use foot.
  4. 4. Possibility of damage due to the water cleaning on the floor.
  5. 5. Inferior to accuracy and speed.

TO-BE

New Concept 「Auto Shutter HuBridge」

Auto Shutter
HuBridge
STEP 1 Freeze & Release(Capture)
If operator takes the Freeze and Release, automatically image goes to the PACS.
  1. 1. Simple installation, No breakdown, Durability, Accurate Image Acquisition
  2. 2. Support OLYMPUS, PENTAX, FUJINON. etc. & Laparoscopy
  3. 3. No need to install device driver into the computer.
  4. 4. No need to change the setting of VIDEO Endoscopic Image Storage(PACS)
  5. 5. Replacing the Foot Switch, but combination available.
  6. 6. No need to worry about the floor cleaning with water
  7. 7. Dimension : 7cmx5cmx2.5cm

Configuration of HuBridge™

This product consists of various cables for connection to endoscope bodies of various brands, a USB cable for connection to a computer, and the HuBridge body.

Cable Connector Application
OLY Cable RJ45 to MDR14Pin Olympus CV-170, CV-260, CV-290
FUJINON Cable BNC to Aux 3.5 M Fujiflim
PENTAX Cable Aux 3.5 M to Aux 3.5 M Olympus X1, Pentax, Stryker etc
USB Cable USB A to B Cable For Signal & POWER

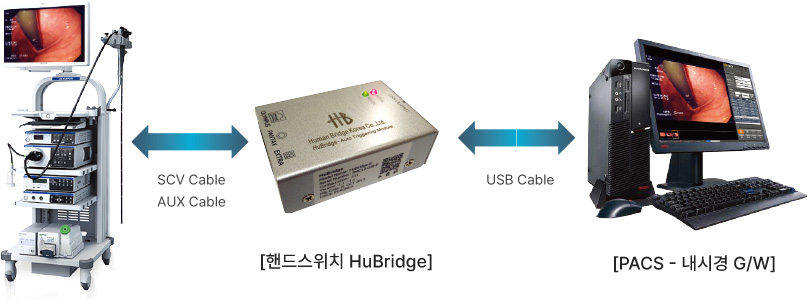

Connection of HuBridge™
